SMART TECHNOLOGY

The Blue Whale-Z1000 is a multifunctional integrated system specifically designed for lighthouse power supply, composed of a multi-environment power control host, an integrated heat exchanger cabinet, long-life cycle lithium batteries, and other components, forming a B+ class energy integration system.  The system adopts a modular design, standardized interfaces, module-free wiring, supports hot swapping, and is simple and convenient to operate during on-site maintenance and replacement.

Adapt to various power supply needs of lighthouses in different scenarios

Innovative architecture design supports multiple energy access methods such as solar energy + grid power, solar energy + diesel generator, and grid power + energy storage, suitable for different power supply conditions of lighthouses. The system is customized for lighthouses with multiple AC and DC power supply standards (220VAC, 12VDC, 24VDC, 48VDC), fully meeting the power supply needs of lighthouses.

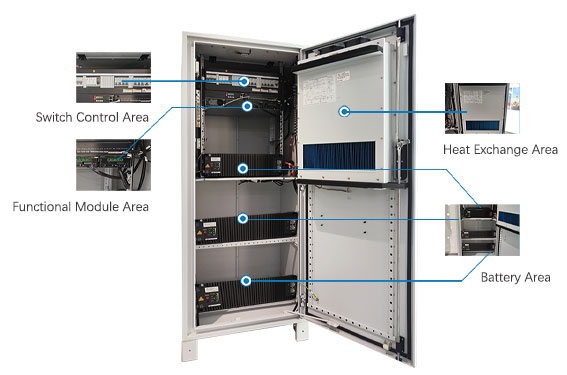

Integrated cabinet installation

Using integrated cabinet installation, it incorporates a thermal exchange temperature control system, with both equipment and batteries installed in the cabinet, ensuring a stable working environment for the equipment, enhancing stability; improving salt mist protection level, and extending equipment lifespan.

The built-in multi-environment monitoring system can monitor environmental factors such as temperature, humidity, and intrusion in real-time, and automatically trigger remote alarms when monitoring parameters exceed limits.

Solar Energy Module

Utilizing solar energy maximum power tracking technology, the charging unit tracks the maximum power point of solar energy, effectively improving photovoltaic charging efficiency.

Lithium Battery Intelligent Management

The system has independent charge and discharge management functions. When the battery is fully charged, the system disconnects the charging input. When the battery discharges to a set threshold, the system reactivates charging, preventing overcharging and extending the battery's lifespan.

The system is compatible with charging management functions for lead-acid batteries and lithium iron phosphate batteries, allowing users to choose battery management configurations based on their needs.

The system is equipped with charging capacity calculation functions, capable of real-time monitoring of charging voltage, charging current, cumulative charging time, and battery capacity information.

Remote monitoring function

The system supports Y-NetEco remote communication system and short-range operation and maintenance display screen functions, supporting BDS/CDMA/GPRS/NB-IoT and other remote communications.

Generator Management Module

The system can optionally include a generator management module, which allows for manual remote startup of the generator for power generation in the event of city power or solar energy failure alarms.  The module is equipped with a monitoring unit that can remotely monitor the operational status of the generator in real time.

Customizable Energy Application Mode

Users can independently choose the priority mode for city power or solar energy supply, improving photovoltaic energy utilization and reducing carbon emissions.  When the system's energy cannot meet the power supply conditions, the system issues an alarm. At this time, the generator can be started remotely to provide power.

Technical Specifications

Battery type	Cyclic lithium battery
Nominal voltage	57VDC
Battery cycle life	> 2000 times @ 85% DOD, 35℃
Battery Capacity (Single Unit)	4800WH @ 0.2C, 35 ℃
Solar Input Power	4000W (Nominal Voltage 72VDC)
Input	AC: Rated 220VAC (85 ~ 300VAC) DC: Rated 72VDC (58 ~ 150VDC)
Output (Optional)	AC: 220VAC DC: 12VDC DC: 24VDC DC: 48VDC
Protective cabinet	650 * 650 * 1600 heat exchange or air conditioning 650 * 650 * 1000 heat exchange or air conditioning
Cabinet protection level	IP55
Operating temperature	-35~+60℃
Sensor	Standard confguration: battery temperature sensor, equipment compartment temperature sensor, door magnetic sensor Optional: smoke sensor, temperature and humidity sensor, water immersion sensor
Communication Interface	CAN/RS485
Y-NetEco	Support
Operating display screen	Standard confguration Support
Battery Charge Management	Support
Battery Health Management	Support
Intelligent System	Built-in
Lifetime Termination Alarm	Built-in
Marine Environment	B+
Comprehensive Lifetime	> 10 Years
Paid Recycling	Support, Support Environmental Protection After the lifespan, the manufacturer provides paid recycling services
Operation indicator light	Built-in
Power indicator light	Built-in
Remote measurement and control	Supports optional confguration
Marine Area Communication Protocol	Supports Optional Confguration
Intelligent Power Saving Function	Supports
Communication Method	GPRS, CDMA, Beidou
Cumulative Usage Time Function	Standard
