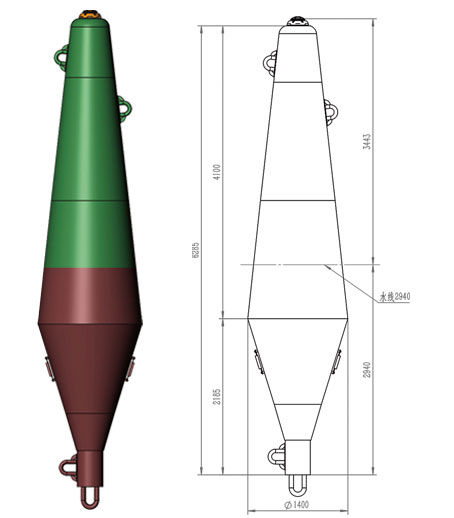

The buoy is composed of an end cap, a conical cylinder body, partition plates, a central tube, lifting lugs, and other welded components. It is divided into five sealing chambers, and even if one sealing chamber is damaged and takes on water, the buoy will still remain afloat and will not sink. Four lifting lugs are installed on the upper and lower parts of the buoy for hoisting and anchor chain connection, and two anode zinc blocks are installed to protect the buoy.



The central tube is made of high-quality carbon steel 20# seamless steel pipe, and the plates are formed and welded from CCSB structural steel for ship hulls.



The color and thickness of the surface paint can be executed according to customer requirements.

Technical Specifications

Framework material	CCSB
Main body material	CCSB
Float Diameter	1400mm
Thickness	6+8mm
Total Weight	2.29T
Draft	2940mm
Focal Height	3443mm
Visible Area	2.92㎡
Buoyancy	22.5KN
Maximum flow velocity	6 knots
