SMART TECHNOLOGY

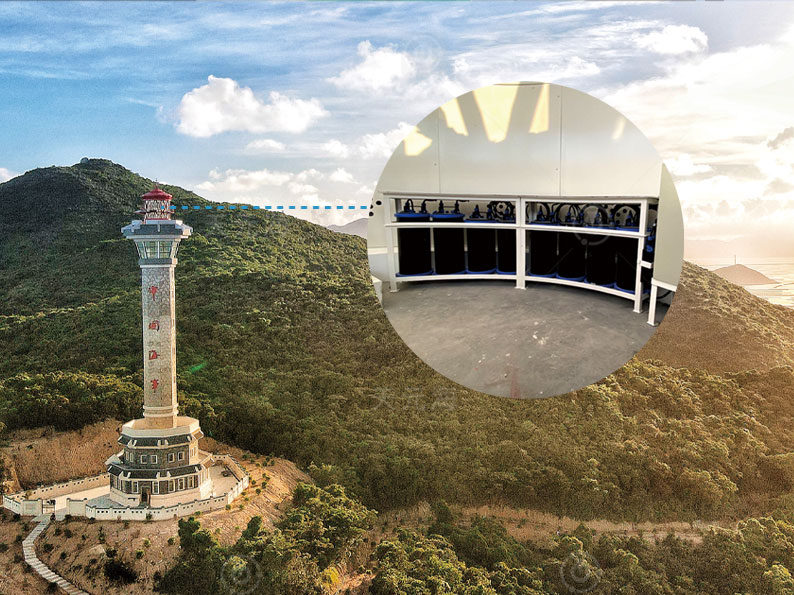

The Blue Whale-4100LN is specifically designed for maritime facilities, featuring a more specialized photovoltaic energy storage battery, which consists of an integrated intelligent battery management system, high-quality lithium cells, a solar photovoltaic control unit, and a highly reliable waterproof casing.
The built-in lithium battery management system is equipped with protection mechanisms for overcharging, over-discharging, and overcurrent, effectively protecting the battery and extending its lifespan.
The information display screen provides a comprehensive overview of battery operation.
Technical Specifications
Voltage Battery |
DC14.8V |
Pack Capacity |
1.54KWH |
Output Voltage |
DC12.2~16.8V |
Charging Maximum Current |
25A |
Charging Overcurrent Protection |
25.5A (±0.5A) Delay time less than 1S, automatic recovery after overcurrent release |
Continuous Discharge Current |
Maximum 25A |
Short Circuit Protection |
100A ( ± 1A ) delay time less than 400uS, self-recovery after short circuit removal |
Over-discharge Protection Voltage |
DC12.2V |
Over-discharge Release Voltage |
DC13.4V |
High Temperature Charging Protection Value |
Above 55℃ duration 4S |
High Temperature Charging Protection Release Value |
Below 54℃ duration 4S |
Low Temperature Charging Protection Value |
Below -10℃ duration 4S |
Low Temperature Charging Protection Release Value |
Above -9℃ duration 4S |
BMS Power Consumption |
40mW (typical value) |
Bluetooth Effective Range |
20 meters |

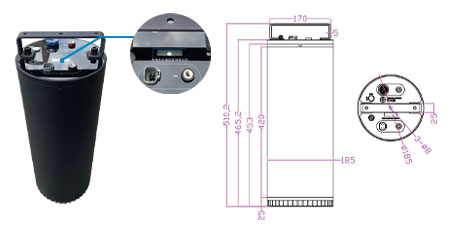

Dimensions |
Φ185mm*510mm |
Weight |
16.8kg |
Operating Temperature |
-10℃~+55℃ |
Operating Humidity |
20~99% RH |
Protection Level |
>IP67 |
