SMART TECHNOLOGY
The Future is Now: ALKAID-7C is the Self-Contained Lantern of the Future. It has been designed and manufactured with the latest technological advances, in addition to its wide range of intelligent functions.
More for less: With top quality parallel LED technology enhanced by the unique Lens design, it has a superior range, and a lifespan of over 15 years.
Connected to the World: Our lanterns with IoT (Internet of Things) communication system have the ability to create a beacon network where all AtoNs are connected to each other.
Like a Rock: We know that we work with the best materials, we manufacture them entirely in our factory, so we do not hesitate to give you 5 years full warranty.
FEATURES
- High-efficiency luminous system, up to 7nm (T:0.74)
- Quick plug-in type lithium-ion battery pack.
- External quick charge port for battery.
- Bluetooth 5.2. Long range connection, up to 20 m.
- APP monitoring and programing module with historical data and alarms alerts.
- Multi synchronization, Sat & GPS.
- Alarm:Over/under voltage, light failure, off-position, abnormal temperature and humidity, collision etc.
-
Impact Sensor as standard.
- Watertightness Certificate: IP67
- Designed and manufactured according to IALA recommendations.
- Optional Type I/III ATON.
Technical Specifications
Optical System
Luminous Range
7nm (T:0.74)
LEDs
Ultra-bright LED diode in parallel +100,000hs of life span.
Optical Lens
Polycarbonate resin (PC): UV stabilised + high transparency (90%).
Sunswitch Threshold
300±50 Lux（0~1000 Lux）
Vertical Divergence
＞3º
Colour
White, Green, Red, Yellow, Blue and Yellow&Blue.
Electronics
Flasher Circuit
Smart Technology
Ultra-low power
Multi-communication
Alarms
Protections
Flash Rhythm
IALA 256 + 744 user customisable
Photocell
ON/OFF with a simple magnetic switch
Power System
Battery Pack
Lithium-ion battery packs (plug-in type) 12.5/25/37.5Ah
Solar Panel Power
Mono-crystaline 7W*4 (28W)
Solar Charge Regulator
PMW
External Charging Port
Water-tight external charging port .
Quiescent Current
＜10mA
Dynamic Power Consumption
＜3W
Operating Voltage
DC7.4V
Communication
Synchronization
GPS
Positioning
GPS
Communication Modules Short Distance
Bluetooth 5.2
Communication Modules Long Distance
GPRS, GSM, CDMA, NB-IOT,AIS
Programming
Bluetooth Android APP
Material
Life Span
+15 years
Lens Cover
Polycarbonate resin (PC): UV stabilised + high transparency (90%) + Ultra-resistant + Integrated anti-bird spike.
Base
Polycarbonate resins

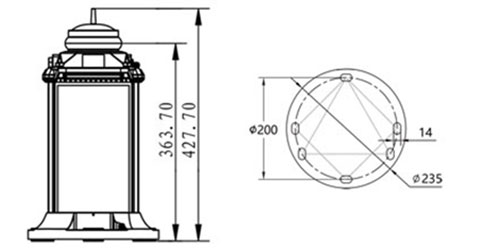

Fixing: 200 mm diameter (4 or 3 bolts - φ14mm).
Body
Modular body
Aluminium Marine
Colour
Colour handle for easy recognition.
AIS
IEC 62320-2 Type
Type 1/Type 3
Standard Compliance
IALA, IEC, ITU
Transmitting Type
FATDMA/RATDMA
Message Support
6, 21 (default)
Message #21 Content
MMSI number, name of AtoN, position, time stamp, dimension of AtoN, type of AtoN.
TX Frequency Range
161.975MHz - 162.025 MHz
TX Power Control
2 - 12.5W (Programmable)
GPS Receiving Channels
50 channels
Input/Output
RS-232, NMEA0183
Virtual Transmissions
Yes
Chaining
No
