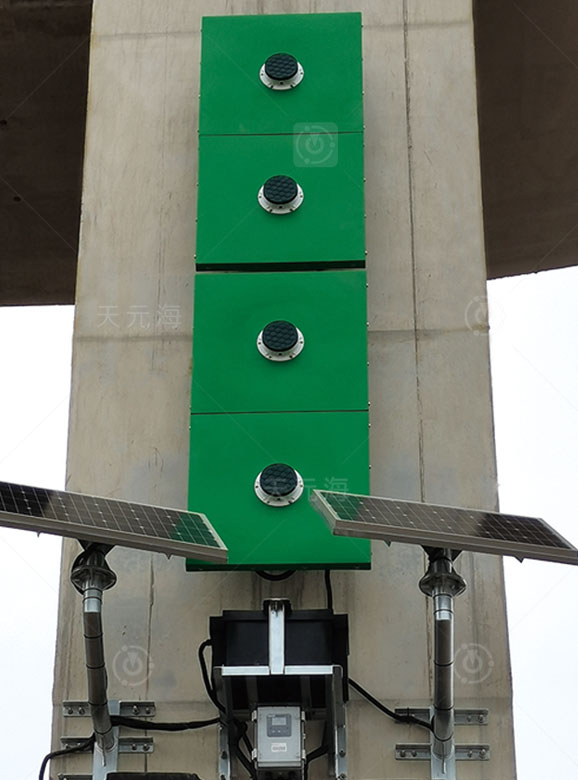

The Dubhe-3B Inland River Bridge Column Light is mainly composed of a PC shell, LED
light source, and circuit board, featuring good stability and aging resistance.
The lamp is small and light, weighing only 0.5kg, which is convenient for installation and maintenance.
The lamp adopts IP67 waterproof connector, which is stable and reliable.
|
Technical Parameters |
|
|
Nominal Range |
3 nautical miles (T = 0.74) |
|
Power Supply |
DC9 ~ 36V (Recommended 12V) |
|
Light Source Total Power |
1W |
|
Static Current |
13mA |
|
Lens Form |
Point-like scattering |
|
Divergence Angle |
＞6° |
|
Brightness Level |
16 levels |
|

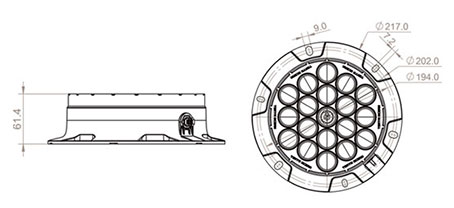

Light source Diameter |
170mm |
|
Lamp Thickness |
70mm |
|
Optional Colors |
Red, Green, White |
|
Lamp Body Material |
PC (Polycarbonate) |
|
Protection Level |
IP67 |
|
Weight |
0.5kg |
|
Backplane (Optional) Technical Parameters |
|
|
Main Material |
Linear low-density polyethylene（LLDPE） |
|
Anti-UV Grade |
UV20 |
|
Color |
IALA Standard Color (10 Years) |
|
Specifcation |
800mmX800mm |
|
Backplane Skeleton |
316L |
|
Connection Form |
Determined by On-site Conditions |
