SMART TECHNOLOGY
A Mountain in the water: Manufactured from the best raw materials, our Linear Low-Density Polyethylene (LLDPE) buoys are much more resistant to impact and adverse weather.
Red is red, not pink: The sun is no longer a problem, our buoys have a UV20 filter as standard, prolonging the colour for many years, more than 10 years. We comply with IALA RAL colours.
Strong Bones: The internal part of the buoy is made of Stainless Steel 316L. All nuts and bolts are also made of stainless steel.And for your peace of mind,our welders are certified.
Climbing:Our buoys have all the necessary structures for the safety of the technician, hand-rails, ladder safety ring, anti-slip floor. So if they fall it is not our fault.
FEATURES
High-Visivility up to 9m²
Float manufactured with Linear Low-Density Polyethylene (LLDPE) with a minimum thickness of 12 mm. The 2-part modular float is joined by a SS316L frame.
Minimum maintenance, its modular structure makes it very easy to transport, install and repair.
Radar detection range(>3nm)
Modular counterweights for greater stability.
This buoy can withstand sea currents of up to 7 knots.
Chromaticity according to IALA Recommendations.
Designed and manufactured according to IALA recommendations.
Technical Specifications
|
Superstructure |
|
|
Material |
LLDPE - Linear Low-Density Polyethylene. |
|
Thickness |
Minimum 10mm |
|
UV Resistant Grade |
UV20 |
|
Skeleton |
316L stainless-steel structure. |
|
Elements |
Ladder Safety ring, Handrail, lD sign. |
|
Radar Detection Range |
＞3nm |
|
Top Mark |
PE/SS316L |
|
Hardware |
SS316L |
|
Float |
|
|
Diameter |
2.4m |
|
Material |
LLDPE - Linear Low-Density Polyethylene. |
|
Thickness |
Minimum 12mm |
|
Filling |
Closed-cell Polyurethane |
|
Water Absorption |
Less than 1% |
|
Modular |
2 x Hulls |
|
UV Resistant Grade |
UV20 |
|
Joint Sections |
316L stainless-steel |
|
Tail |
|
|
Material |
Hot-dip galvanised |
|
Counterweight |
Treated steel, scalable according to stability |
|
Types |
Short/Large |
|
Protection |
Sacrifice anodes |
|
Buoys Features |
|
|
Lifting Eyes |
2nos.SS lifting eyes welded to the float frame. |
|
Mooring Eyes |
2nos.SS mooring eyes welded to the float flame. |
|
Surface |
Anti-sliding |
|
Colour Life |
+10 years |
|
Life Spam |
+15 years |
|

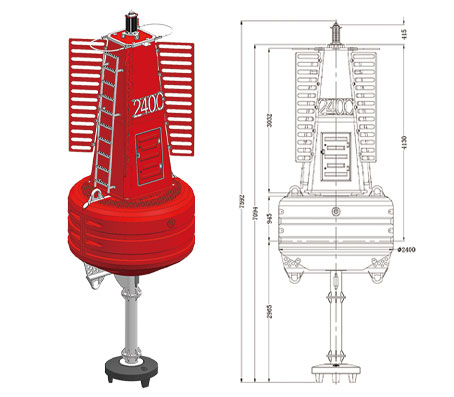

Technical Data |
|
|
Float Diameter |
2400mm |
|
Visible Area |
9m² |
|
Focal Height |
4545mm |
|
Float Height |
1550mm |
|
Draft |
2965mm (Large tail) |
|
Total Height |
7592mm |
|
Total Weight |
2.15Tn |
|
Buoyancy |
21Kn |
|
Extra Weight |
100Kg=-25mm |
