SMART TECHNOLOGY
The Future is Now: ALKAID-5CT is the Self-Contained Lantern of the Future. It has been designed and manufactured with the latest technological advances, in addition to its wide range of intelligent functions.
More for less: With top quality parallel LED technology enhanced by the unique Lens design, it has a superior range, and a lifespan of over 15 years.
Connected to the World: Our lanterns with IoT (Internet of Things) communication system have the ability to create a beacon network where all AtoNs are connected to each other.
Like a Rock: We know that we work with the best materials, we manufacture them entirely in our factory, so we do not hesitate to give you 5 years full warranty.
FEATURES
- High-efficiency luminous system, up to 5nm (T:0.74)
- Quick plug-in type lithium-ion battery pack.
- External quick charge port for battery.
- Bluetooth 5.2. Long range connection, up to 20 m.
- APP monitoring and programing module with historical data and alarms alerts.
- Multi synchronization, Sat & GPS.
- Alarm:Over/under voltage, light failure, off-position, abnormal temperature and humidity,collision etc.
-
Impact Sensor as standard.
- Watertightness Certificate: IP67
- Designed and manufactured according to IALA recommendations.
- Optional Type I/III ATON.
Technical Specifications
|
Optical System |
|
|
Luminous Range |
5nm (T:0. 74) |
|
LEDs |
Ultra-bright LED diode in parallel +100,000hs of life span. |
|
Optical Lens |
Polycarbonate resin (PC): UV stabilised + high transparency (90%). |
|
Sunswitch Threshold |
300±50 Lux（0~1000 Lux） |
|
Vertical Divergence |
＞8º |
|
Colour |
White, Green, Red, Yellow, Blue and Yellow&Blue. |
|
Electronics |
|
|
Flasher Circuit |
Smart Technology Ultra-low power Multi-communication Alarms Protections |
|
Flash Rhythm |
IALA 256 + 744 user customisable |
|
Photocell |
ON/OFF with a simple magnetic switch |
|
Power System |
|
|
Battery Pack |
Lithium-ion battery packs (plug-in type) 12.5/25/37.5/50Ah |
|
Solar Panel Power |
Mono-crystaline 7W*4 (28W) |
|
Solar Charge Regulator |
PMW |
|
External Charging Port |
Water-tight external charging port . |
|
Quiescent Current |
＜10mA |
|
Dynamic Power Consumption |
＜3W |
|
Operating Voltage |
DC7.4V |
|
Communication |
|
|
Synchronization |
GPS |
|
Positioning |
GPS |
|
Communication Modules Short Distance |
Bluetooth 5.2 |
|
Communication Modules Long Distance |
GPRS, GSM, CDMA, NB-IOT |
|
Programming |
Bluetooth Android APP |
|
Material |
|
|
Life Span |
+15 years |
|
Lens Cover |
Polycarbonate resin (PC): UV stabilised + high transparency (90%) + Ultra-resistant + Integrated anti-bird spike. |
|
Base |

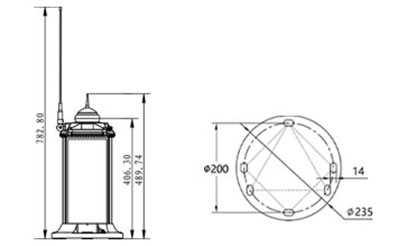

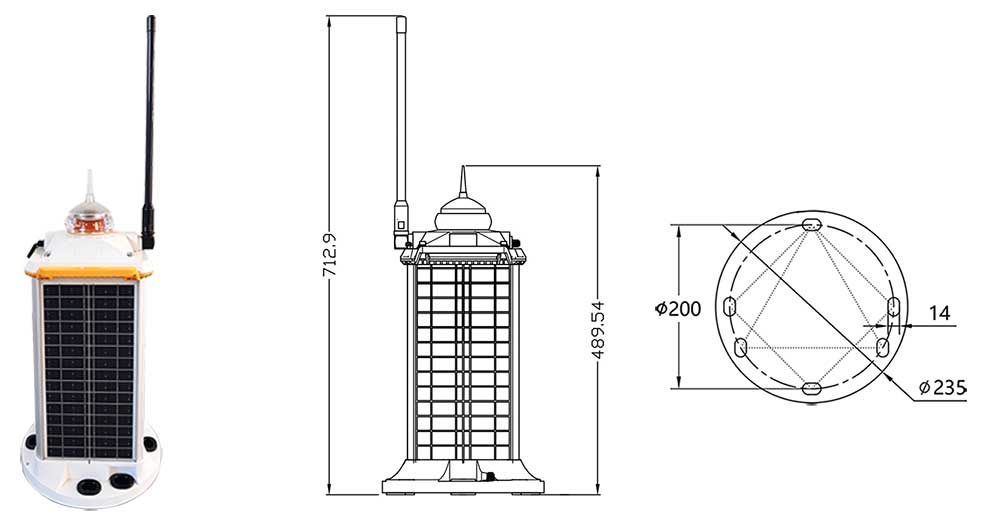

Polycarbonate resins Fixing: 200 mm diameter (4 or 3 bolts - φ14mm). |
|
Body |
Modular body Aluminium Marine |
|
Colour |
Colour handle for easy recognition. |
|
AIS |
|
|
IEC 62320-2 Type |
Type 1/Type 3 |
|
Standard Compliance |
IALA, IEC, ITU |
|
Transmitting Type |
FATDMA/RATDMA |
|
Message Support |
6, 21 (default) |
|
Message #21 Content |
MMSI number, name of AtoN, position, time stamp, dimension of AtoN, type of AtoN. |
|
TX Frequency Range |
161.975MHz - 162.025 MHz |
|
TX Power Control |
2 - 12.5W (Programmable) |
|
GPS Receiving Channels |
50 channels |
|
Input/Output |
RS-232, NMEA0183 |
|
Virtual Transmissions |
Yes |
|
Chaining |
No |
