FEATURES

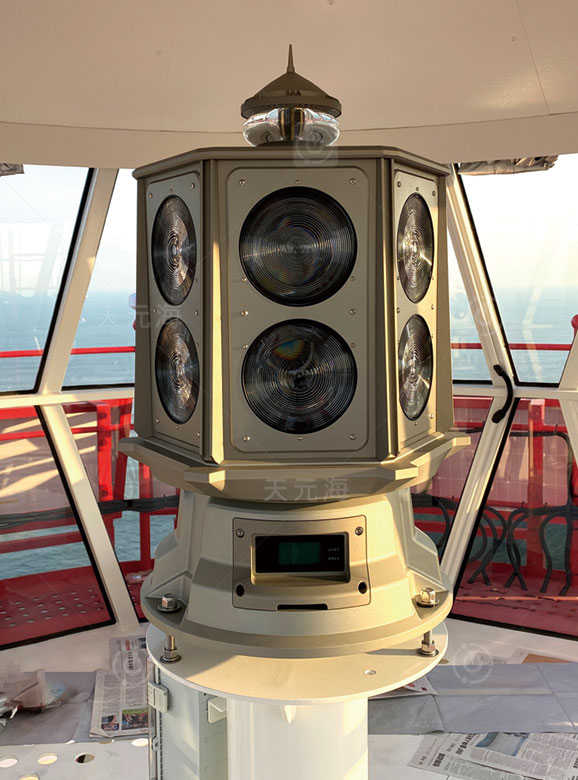

The Polaris Series Rotating Beacon is a large intelligent navigation beacon that meets international IALA recommended standards. It uses a six-sided light source system with a maximum range of over 22 nautical miles and features adjustable range technology, fully meeting the needs of primary and secondary lighthouses.
The beacon adopts an all-aluminum alloy shell and anti-corrosion surface coating. The light source uses high-efciency, long-life LEDs with an average lifespan of over 100,000 hours. Combined with natural convection + active cooling system, the overall lifespan of the lamp is greatly enhanced. It is equipped with an integrated automatic switching emergency light, which reduces installation complexity and also improves overall reliability.
Optional communication methods (GPRS, NB-IOT, BDS, CDMA) with external communication terminals enable remote operation monitoring . The built-in Bluetooth short-range communication technology com-bined with a dedicated mobile APP application allows detailed under-standing of the lamp's operating status and modifcation of operating parameters. The host status display screen can monitor the operating status of the lamp and power supply in real-time.
Built-in high-performance servo motor + oil-immersed low-speed bearing to ensure maximum smooth operation of the lamp, motor life > 10 years.
Comprehensive alarm functions (abnormal rotation speed, abnormal tem-perature, abnormal voltage, abnormal current, abnormal lighting).
Modular disassembly structure for easier transportation.
Technical Specifications
|
Electrical Parameters |
|
|
Input Voltage |
9-36VDC |
|
Lamp Weight |
48kg |
|
Operating Temperature |
-35℃ to +60℃ |
|
Main Lamp |
|
|
Nominal Range |
22 Nautical Miles |
|
Light Color |
White |
|
Vertical Divergence Angle |
>1.5° |
|
Horizontal Divergence Angle |
>1.5° |
|
Dynamic Power Consumption |
＜70W |
|
Static Power Consumption |
＜3W |
|
Rotation Speed Setting |
Continuously adjustable from 3 to 120s, step size 1s, error ≤ ± 1% |
|
Daylight Threshold |
300±50 Lux（100~2000 Lux） |
|
Bluetooth Range |
20 Meters |
|
Emergency Light |
|
|
Nominal Range Light |
10 Nautical Miles |
|
Light Color |
White |
|
Vertical Divergence Angle |
>2.5° |
|
Horizontal Divergence Angle |
360° |
|
Dynamic Power Consumption |
＜10W |
|
Static Power Consumption |
＜0.4W |
|
Communication Terminal (Optional) |
|
|
Telemetry Communication MethodRemote |
Communication BDS / NB-IOT /CDMA/ GPRS Short-range Communication BLUETOOTH |
|
Positioning Method |
BDS / GPS / BDS +GPS (Optional) |
|
Alarm |
Speed Abnormality, Temperature and Humidity Abnormality, VoltageAbnormality, Current Abnormality,Light Abnormality. |
|
Remote Control |
Speed, Daylight Threshold, Flash Quality, etc. |
