SMART TECHNOLOGY

The Tenyn Ocean's Hongyan -PORT is a high-performance outdoor AIS transponder.

This product is an integrated small base station that combines reception, transmission, and power management; the base station operates in the maritime VHF frequency band, with two built-in high-frequency AIS receiving channels (87B / 88B), utilizing two TDMA receivers to simultaneously receive data on these two channels.



It is equipped with 1 AIS transmitter for transmitting messages 21, 6, and other reports.  The AIS transponder receives dynamic and static data from nearby AIS vessels, base stations, ATONs, and other stations through a dedicated VHF data link, with high sensitivity and a range of over 30 nautical miles.



The stamped integrated metal housing provides excellent waterproof performance, allowing the device to be installed in harsher marine environments.





FEATURES

Receiving Function: The collected AIS data can be used for safety monitoring and early warning in specific areas such as open seas, ports, channels, anchorages, wind farms, marine ranches, underwater pipelines, and submarine cables;

Transmission Function: Equipped with ATON functionality and electronic fence early warning and alarm functions;

Wireless Transmission: Dual-channel communication for main and backup, supporting networks such as Telecom, Mobile, and Unicom;

Outdoor AIS transceiver wired transmission: Supports Ethernet and fiber optic interfaces;

Power Management: Built-in solar charging management function and discharge management function;

Convenient Inspection: Built-in large-size display screen and short-range Bluetooth communication function, allowing all operational parameters to be read and set through the device's display screen and handheld terminal.

Technical Specifications

Operating Voltage	9-36VDC
Solar Input Maximum Power	300W
Average Power Consumption	<5W
Receiver Quantity	2
Transmitter Quantity	1
Transmitter Power	1-12.5W Adjustable
Channel 1	CH-87B, 161.975MHz
Channel 2	CH-88B, 162.025MHz
Channel Bandwidth	25KHz
Channel Rate	9600bps
Receiving Sensitivity	-115dBm @ 20% PER
Data Format	NMEA 0183
Wireless Communication Method	4G/5G
Wired Communication Method	Ethernet, Fiber Optic
Charge and Discharge Control Function	Built-in
Short-range Bluetooth Communication	Built-in
Parameters Display	Built-in
ATON Function	Support
Electronic Fence Function	Support
Operating Status Alarm	Support

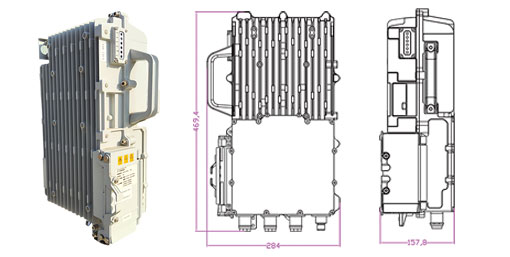

Dimensions	469x284x157mm
Weight	11kg
Operating Temperature	-20℃~+60℃
Storage Temperature	-55℃~+85℃
Humidity	0-95%
Waterproof Rating	IP65
