SMART TECHNOLOGY

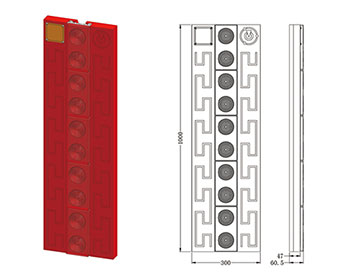

The Phecda-3A auxiliary light strip consists of a PC shell, LED light source, Fresnel lens, and controller, adopting a series connection luminous structure, resulting in a clearer light boundary.
FEATURES
-
Adjustable Range: The luminous intensity can be adjusted remotely or locally according to the needs of the navigation channel.
-
Synchronous Communication: The light strip has SYNC synchronous communication capabilities, allowing it to communicate synchronously with the leading light, and can be controlled by the main light's on/off, synchronous flashing, and light quality control functions.
-
Ultra-low power: Single strip (1 meter) power consumption less than 1W, best suited for solar power supply.
Technical Specifications
|
Control Terminal |
|
|
Input Voltage |
DC9~36V |
|
Maximum Load Power |
60W |
|
Positioning Method |
BDS / GPS / BDS + GPS (optional) |
|
Telemetry Communication Method |
Remote communication BDS / NB-IOT / CDMA / GPRS Short-range communication BLUETOOTH |
|
Communication Interface |
485 |
|
Synchronous Method |
BDS / GPS / BDS + GPS (optional) |
|
Output Port |
Main light, auxiliary light |
|
Light quality Control |
Back up light |
|
Light source Power Adjustment Method |
Communication type |
|
Protection Level |
IP67 |
|
Operating Temperature |
-35℃~+60℃ |
|
Light Strip |
|
|
Light Source Divergence Angle |
6° |
|
Light Color |
Red, green, yellow, white |
|
Protection Level |
IP67 |
|
Operating Temperature |
-35℃~+60℃ |
|
Visible Back Panel |
|
|
Main Body Material |
Linear low-density polyethylene (LLDPE) |
|
UV Resistance Level |
UV20 |
|
Color |
IALA standard color (10 years) |
|
Weight |
7.6kg/m |
|
Optional Functions |
|
|
Main light, backup light switching function |
|
|
RF remote control function |
|
|
Telemetry communication method |
|
