SMART TECHNOLOGY

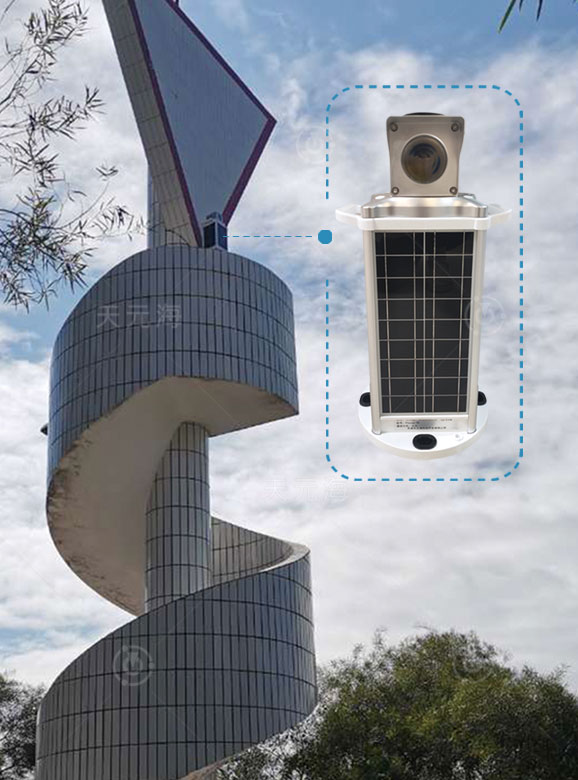

The Future is Now: PHECDA-12B is the Leading Light of the Future. It has been designed and manufactured with the latest technological advances, in addition to its wide range of intelligent functions.
More for less: With top quality parallel LED technology enhanced by the unique Lens design, it has a superior range, and a lifespan of over 15 years.
Connected to the World: Our lanterns with IoT (Internet of Things) communication system have the ability to create a beacon network where all AtoNs are connected to each other.
Like a Rock: We know that we work with the best materials, we manufacture them entirely in our factory, so we do not hesitate to give you 5 years full warranty.
FEATURES
-
High-efficiency luminous system, up to 8~12nm (T:0.74)
- Quick plug-in type lithium-ion battery pack.
- External quick charge port for battery.
- Bluetooth 5.2. Long range connection, up to 20 m.
- APP monitoring and programing module with historical data and alarms alerts.
- Multi synchronization, Sat & GPS.
- Alarm:Over/under voltage, light failure, off-position, abnormal temperature and humidity, collision etc.
- Impact Sensor as standard.
- Watertightness Certificate: IP67
- Designed and manufactured according to IALA recommendations.
- Optional Type I/III ATON.
Technical Specifications
|
Optical System |
|
|
Luminous Range |
8~12nm (T:0. 74) |
|
LEDs |
Ultra-bright LED diode in parallel +100,000hs of life span. |
|
Optical Lens |
Polycarbonate resin (PC): UV stabilised + high transparency (90%). |
|
Sunswitch Threshold |
300±50 Lux（0~1000 Lux） |
|
Vertical Divergence |
＞1.5º |
|
Colour |
White, Green, Red. |
|
Electronics |
|
|
Flasher Circuit |
Smart Technology Ultra-low power Multi-communication Alarms Protections |
|
Flash Rhythm |
IALA 256 + 744 user customisable |
|
Photocell |
ON/OFF with a simple magnetic switch |
|
Power System |
|
|
Battery Pack |
Lithium-ion battery packs (plug-in type) 12.5/25/37.5/50Ah |
|
Solar Panel Power |
Mono-crystaline 7W*4 (28W) |
|
Solar Charge Regulator |
PMW |
|
External Charging Port |
Water-tight external charging port . |
|
Quiescent Current |
＜10mA |
|
Dynamic Power Consumption |
＜3W |
|
Operating Voltage |
DC7.4V |
|
Communication |
|
|
Synchronization |
GPS |
|
Positioning |
GPS |
|
Communication Modules Short Distance |
Bluetooth 5.2 |
|
Communication Modules Long Distance |
GPRS, GSM, CDMA, NB-IOT，AIS |
|
Programming |
Bluetooth Android APP |
|
Material |
|
|
Life Span |
+15 years |
|
Lens Cover |
Polycarbonate resin (PC): UV stabilised + high transparency (90%) + Ultra-resistant + Integrated anti-bird spike. |
|
Base |

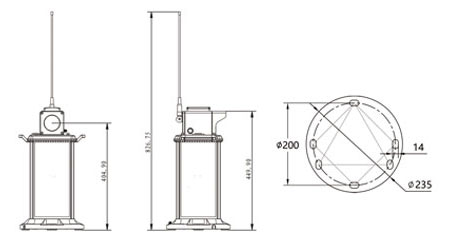

Polycarbonate resins Fixing: 200 mm diameter (4 or 3 bolts - φ14mm). |
|
Body |
Modular body Aluminium Marine Corrosion resistant surface coating |
|
Colour |
Colour handle for easy recognition. |
|
AIS |
|
|
IEC 62320-2 Type |
Type 1/Type 3 |
|
Standard Compliance |
IALA, IEC, ITU |
|
Transmitting Type |
FATDMA/RATDMA |
|
Message Support |
6, 21 (default) |
|
Message #21 Content |
MMSI number, name of AtoN, position, time stamp, dimension of AtoN, type of AtoN. |
|
TX Frequency Range |
161.975MHz - 162.025 MHz |
|
TX Power Control |
2 - 12.5W (Programmable) |
|
GPS Receiving Channels |
50 channels |
|
Input/Output |
RS-232, NMEA0183 |
|
Virtual Transmissions |
Yes |
|
Chaining |
No |
