SMART TECHNOLOGY

The Seagull-A rotationally molded top mark includes red can shape, green cone shape, yellow fork shape, black sphere shape, and black cone shape, all conforming to IALA standards. The main body of the top mark is made of linear low-density polyethylene material, while the support rod is made of high-strength 6061 aerospace aluminum, molded as a single piece, providing excellent visual effects, high UV resistance, strong impact resistance, and good wind conductivity.

Technical Specifications

Weighting table
Can top mark	3.67kg
Cone top mark	2.72kg
Fork top mark	2.48kg
Sphere top mark	2.26kg
Size table
Can top mark	Diarmeter：Φ500mm	Height：500mm
Cone top mark	Width diameter：Φ500mm	Narrow face diameter：Φ150mm	Height：500mm
Fork top mark	Length：900mm	Wide：100mm	Center wide：290mm	Thickness：100mm
Sphere top mark	Diarmeter：Φ500mm

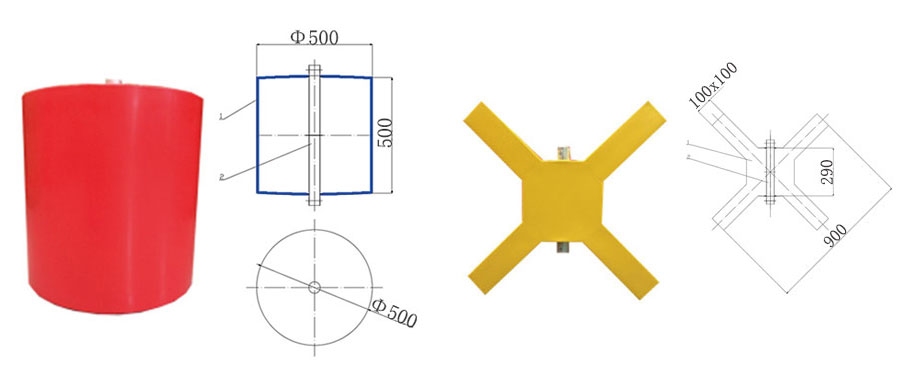

                                       Can top mark                                                           Fork top mark

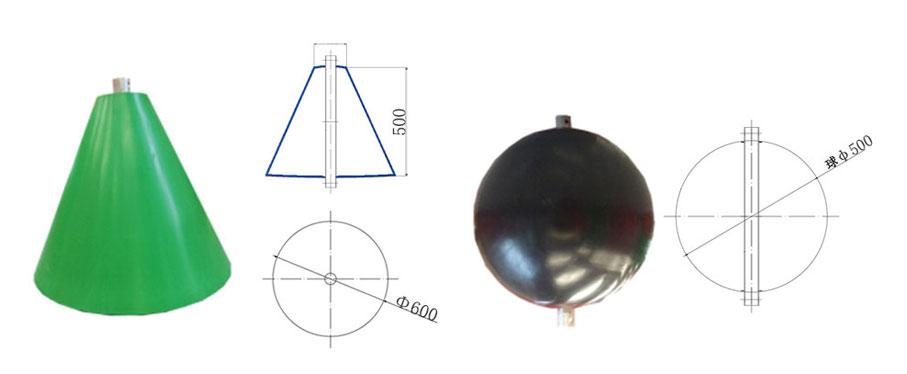

                                   Cone top mark                                                            Sphere top mark
