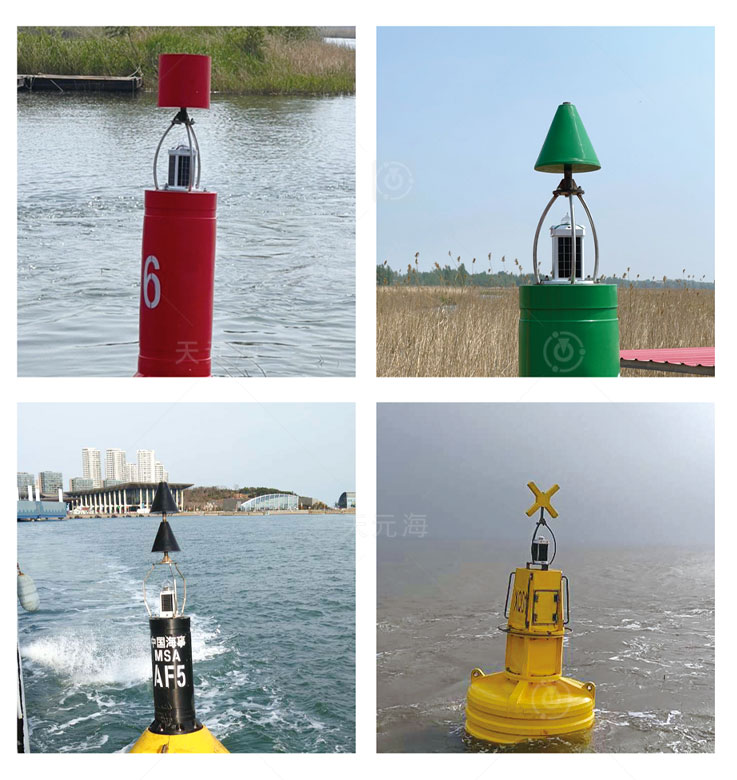

The Seagull-B rotationally molded top mark includes red can shape, green cone shape, yellow fork shape, black sphere shape, and black cone shape, all conforming to IALA standards. The main body of the top mark is made of linear low-density polyethylene material, while the support rod is made of high-strength 6061 aerospace aluminum, molded as a single piece, providing excellent visual effects, high UV resistance, strong impact resistance, and good wind conductivity.

Technical Specifications

Weighting table
Can top mark	3.5kg
Cone top mark	3kg
Fork top mark	3kg
Sphere top mark	1.5kg
Size table
Can top mark	Diarmeter：Φ320mm	Height：320mm
Cone top mark	Width diameter：Φ320mm	Narrow face diameter：Φ78mm	Height：300mm
Fork top mark	Length：600mm	Wide：70mm	Center wide：180mm	Thickness：70mm
Sphere top mark	Diarmeter：Φ320mm

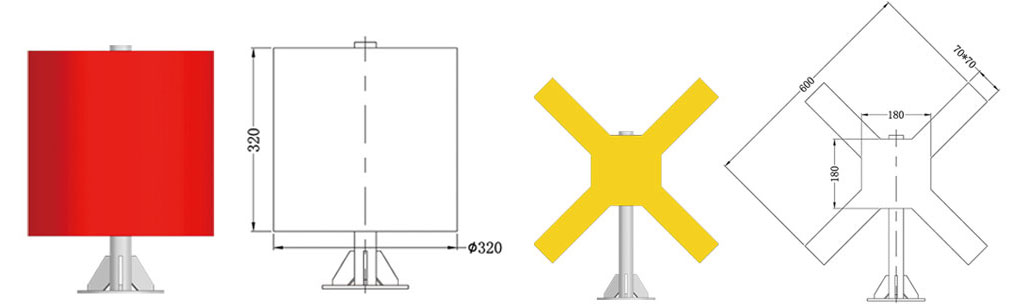

                                       Can top mark                                                                       Fork top mark

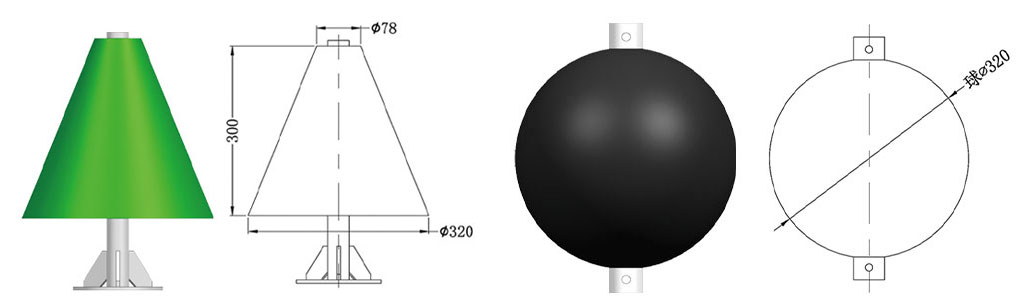

                                   Cone top mark                                                            Sphere top mark
