SMART TECHNOLOGY
Small but tough: Manufactured from the best raw materials, our Linear Low-Density Polyethylene (LLDPE) buoys are much more resistant to impact and adverse weather.
Red is red, not pink: The sun is no longer a problem, our buoys have a UV20 filter as standard, prolonging the colour for many years, more than 10 years. We comply with IALA RAL colours.
Take a Nap: This little big buoy has the facility to be stored vertically, a solution for small spaces.
FEATURES
High-Visivility up to 2.16m²
Float manufactured with Linear Low-Density Polyethylene (LLDPE) with a minimum thickness of 10 mm.
Minimum maintenance, its modular 2 parts makes it very easy to transport, install，repair and storage.
Radar detection range(>1.5nm)
Lifting eyes connected to the mooring eye internally with SS rods.
PE Top mark.
This buoy can withstand sea currents of up to 6 knots.
Chromaticity according to IALA Recommendations.
Designed and manufactured according to IALA recommendations.
Technical Specifications
|
Superstructure |
|
|
Material |
LLDPE - Linear Low-Density Polyethylene. |
|
Thickness |
Minimum 8mm |
|
UV Resistant Grade |
UV20 |
|
Connection |
316L stainless-steel structure. |
|
Radar Detection Range |
＞1.5nm |
|
Top Mark |
PE/SS316L |
|
Hardware |
SS316L |
|
Float |
|
|
Diameter |
1.5m |
|
Material |
LLDPE - Linear Low-Density Polyethylene. |
|
Thickness |
Minimum 10mm |
|
Filling |
Closed-cell Polyurethane |
|
Water Absorption |
Less than 1% |
|
UV Resistant Grade |
UV20 |
|
Joint Sections |
SS316L |
|
Tail Bottom |
|
|
Material |
LLDPE - Linear Low-Density Polyethylene. |
|
Counterweight |
Contrete, scalable according to stability |
|
Types |
Skirt |
|
Resistanse |
Internal rods |
|
Buoys Features |
|
|
Lifting Eyes |
2nos.SS lifting eyes welded to the mooning eye. |
|
Mooring Eyes |
1nos.SS mooring eye. |
|
Colour Life |
+10 years |
|
Life Spam |
+15 years |
|

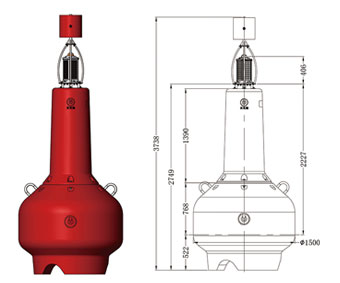

Technical Data |
|
|
Float Diameter |
1500mm |
|
Visible Area |
2.16m² |
|
Focal Height |
2633mm |
|
Float Height |
1290mm |
|
Draft |
522mm |
|
Total Height |
3738mm |
|
Total Weight |
0.55Tn |
|
Buoyancy |
5.4Kn |
|
Extra Weight |
100Kg=-55mm |
