SMART TECHNOLOGY

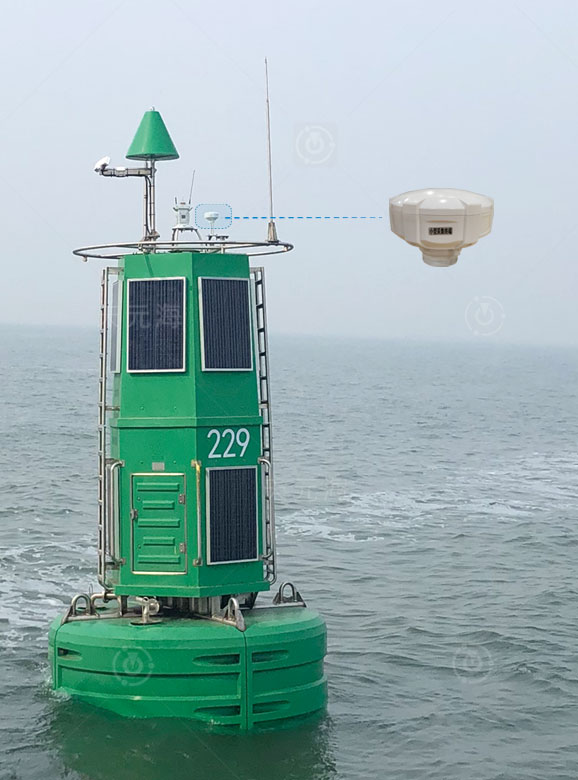

The Pigeon-W60B Model Beacon Remote Data Acquisition Terminal consists of a communication unit, control unit, detection unit, and shell. It can collect battery voltage, device operating status, operating current, real-time location, etc., facilitating real-time monitoring of the device. It adopts the Beidou satellite communication method with independent national intellectual property rights, and has a wide communication transmission range.
This series of remote data acquisition terminals is compatible with various types of devices, enabling remote monitoring of different types of equipment.
Technical Specifications
|
Input Voltage |
DC9~36V |
|
Static Power Consumption |
＜0.24W |
|
Dynamic Power Consumption |
＜1.2W |
|
Rated Load Power |
＜60W |
|
Positioning Method |
BDS / GPS / BDS + GPS (optional) |
|
Telemetry Communication Method |
Remote Communication BDS / NB-IOT Short-range Communication BLUETOOTH |
|
Bluetooth Effective Range |
20 meters |
|
Alarm |
Over/Under Voltage, Fault, Over Current |
|
Weight |
1.6kg (including 5 meters of cable) |
|
Protection Level |
IP67 |
|
Operating Temperature |
-35℃~+60℃ |
