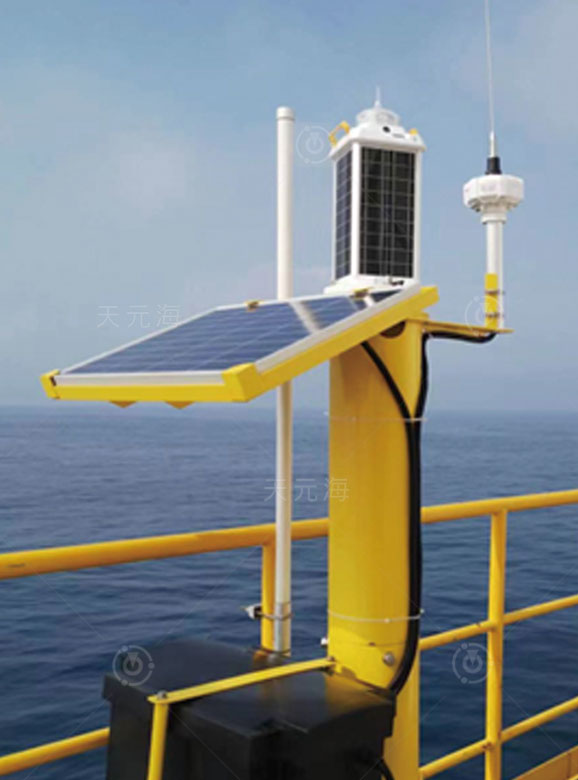

The Pigeon-AIS-I18 Model Aton Collection Terminal is a small AIS ATON STATION product that complies with the defnitions set by IALA and IEC standards. It uses FATDMA communication method to periodically send buoy position information. This small AIS buoy terminal is compatible with Message 21, broadcasting information such as the buoy name, position, MMSI, etc., to vessels,and Message 6 for buoy monitoring information, including current, voltage, name, type, identification code, and other details of the buoy light. This information is sent to the AIS buoy management server via a preset AIS base station number.



The outstanding power consumption indicators enable the terminal to have a very broad application field, especially providing a reliable communication solution for buoys with limited power generation capacity.

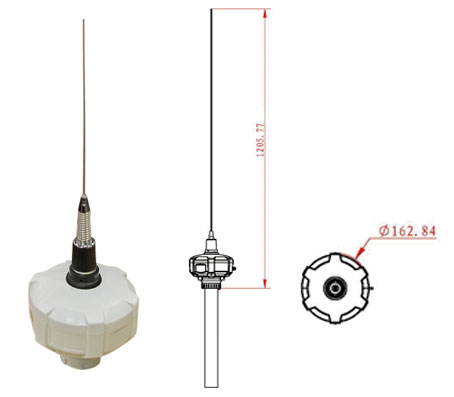

The integrated high-gain whip antenna enhances communication reliability and stable operating range.



Technical Specifications

Operating Range	18 Nautical Miles (T=0.74)
Transmission Frequency	CH2087/CH2088    161.975MHz/162.025MHz
Operating Voltage	Standard DC9~18V, DC24V requires customization
Transmission Power	＜12.5W
Average Power Consumption	＜1W
Positioning Method	GPS
Communication Working Mode	FATDMA
Information Reporting Mode	Mode A / Mode B (Optional)
Send Information Type	Message 6 / Message 21
Sending Time Interval	3~250min (Configurable)
Weight	1.0kg
Protection Level	IP67
Operating Temperature	-35℃~+60℃
