FEATURES

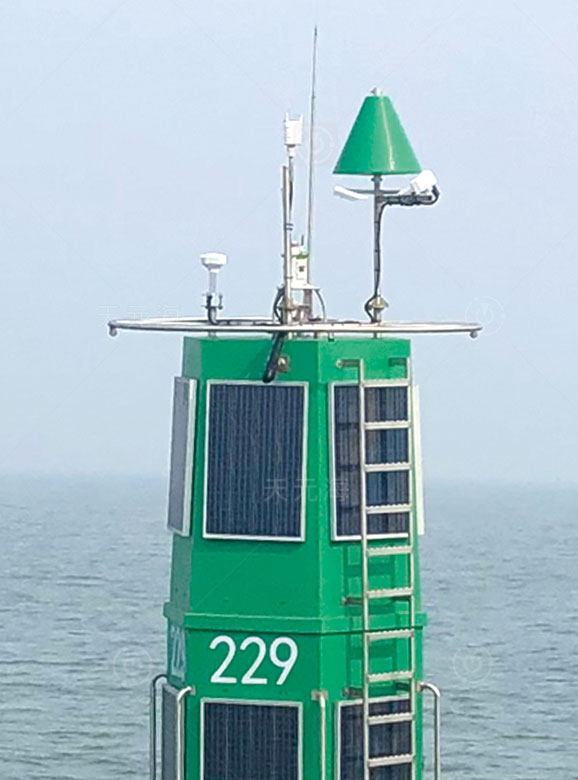

The intelligent imaging navigation light mainly consists of a metal shell, control motherboard, LED light source, AIS unit, and intelligent imaging unit. The lamp integrates both navigation light and intelligent imaging recording functions, and can be applied to navigation aids such as buoys and light piles.
AIS Collision Warning Function: The lamp has a built-in AIS unit that receives AIS information from nearby vessels. When a vessel enters the preset electronic fence area, it sends a collision warning signal to the vessel and simultaneously activates the image recording and locking function. The images within the warning range are stored in the ‘black box’ and the warning information is uploaded to the monitoring system.
Collision Alarm Function: The lamp is equipped with a built-in collision sensor. When the buoy is hit, the image recording and locking function is continuously activated, and the alarm information is uploaded to the monitoring system.
Beacon Light Function: The lamp has an adjustable range of 3 to 7 nautical miles, a horizontal divergence angle of 360°, and a vertical diver-gence angle greater than 8°. The light color options include red, green, yellow, and white, all of which comply with IALA standards.
Dual Remote Communication, Internal Data Interchange: Video data is uploaded to the monitoring platform via 4G/5G communication.
The beacon light operation data is monitored remotely using BDS/CDMA/GPRS/NB-IOT. The internal AIS unit, intelligent imaging unit, and lamp unit data are interconnected, achieving comprehensive digital management of the lamp.
Video Remote Transmission Function: Optional real-time upload, alarm-triggered recording, or remote on/of modes to control video data upload modes.
Technical Specifications
|
Optical System |
|
|
Luminous Range |
up to 7nm (T=0.74) |
|
Input Power |
9-36Vdc |
|
Peak Power Consumption |
max. 7W |
|
Colours |
R, G, W & Y |
|
Positioning Method |
GPS, Sat or GPS+Sat |
|
Long-range Communication |
Sat, IoT, GSM, GPRS, AIS |
|
Short-range Communication |
Bluetooth 5.2, IoT |
|
Daylight Threshold |
300 Lux (0-2000) |
|
Horizontal Divergence |
360° |
|
Vertical Divergence |
>8° |
|
Synchronisation Method |
GPS |
|
Programming |
Bluetooth 5.2 |
|
Alarms |
Voltage, Impact, Temperature, Failure, humidity, etc. |
|
Weight |
3.7Kg |
|
Watertightness |
IP68 |
|
Operation Temperature |
-35° to +60° C |
